Description
This WSJB 300 is an aluminium hull kit for a 2 person mini jetboat.
This fun little mini is 3.4 mtr long and 1,5 mtr wide. The WSJB300 hulls and engine bay are ideal for a Seadoo Spark donor engine, but this kit includes a Hull Plate and Transom without cut-outs, so you can install your own intake as required. See my intake options if you want something pre-farbricated and ready to install. Additionally the kit includes large size stringers for extra strength, a high windscreen against spray and wash, a bulkhead and engine cover.
With a 12deg deadrise and an integrated trimflap in the hull plate, this boat is very stable on the water and nearly impossible to tip over. The hull kit is made out of marine grade aluminium plates (EN5083). 5mm For the hull-plate and chines, and 3mm for the rest of the structure. The plates are cnc laser cut and machine bended, which results in a perfect fit, easy welding and a clean finish.

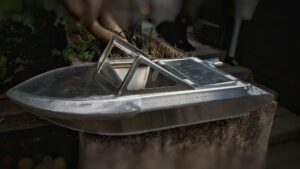

This diy kit comes as a bare hull and needs to be welded together. After welding it needs to be completed with an intake, engine, steering, seats, accessoires, etc. Some examples of the end result you can find in attached pictures.
If you do not feel like welding, then order the fully welded option instead. With the hull all welded up by us, you can start off right away with fitting your engine and other parts.
This WSJB 300 kit includes the following parts:
– 1 Hull plate
– 2 Chines
– 2 Bow sides
– 1 Foredeck
– 2 Engine bearers (L+R)
– 1 Footrest
– 1 Set deck stiffeners (5 pcs)
– 1 Set high window frames (L + M + R)
– 1 Transom
– 1 Transom middle
– 1 Transom cover
– 2 Sides (L+R)
– 2 Transom corners (L+R)
– 1 Bulkhead
– 1 Engine bay cover
– 1 Construction manual in paperback, pdf on request.
Once finished it has an overall dimension of 340 x 154 x 110cm and weighs appr 150 kg.
Optionally packed in a wooden transport crate for solid and easy transport.
Backordering takes approximately 4-6 weeks (to cut and bend the plates, and have it packed and ready for shipment).
