Description

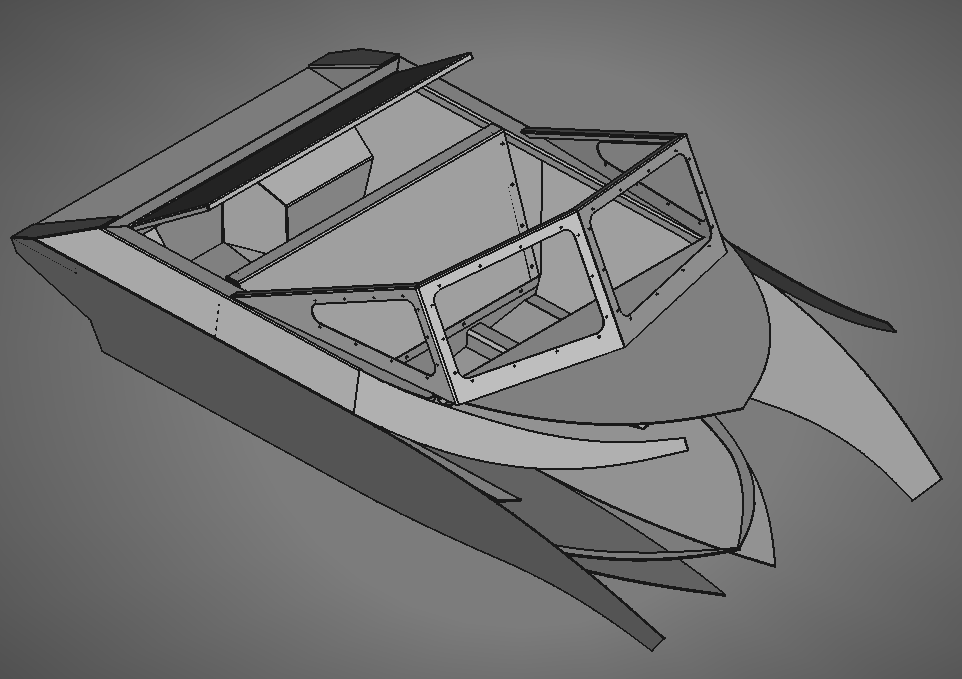

The WSJB 190 is an All Aluminium One Person Mini Jetboat hull kit.
It is 1.9 mtr long on the waterline and 1,2 mtr wide. The engine bay can fit a 701 or 650 engine or any other small 2 cilinder engine. But maybe you can find a low power electric propulsion system for your kids to steer? The kit comes with a high windscreen and removable bulkhead for easy access to the engine compartment.

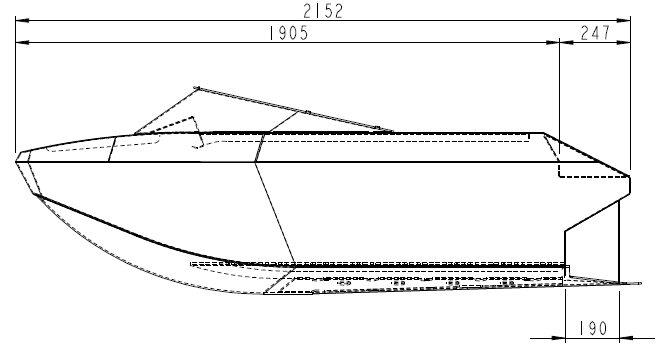

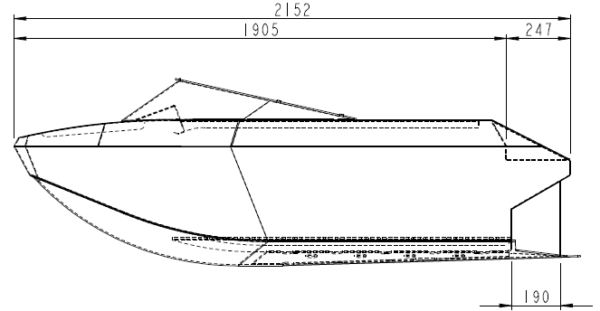

With 12deg deadrise and an integrated trimflap the hull of this boat is super stable, on or off the water. The hull kit is made out of standard aluminium plates (AW5754). A 4 mm hull plate and 3 mm for the structure. The plates are cnc laser cut and machine bended, which results in a perfect fit, easy welding and above all, an indestructable vessel. Once finished this boat has an overall dimension of 215 x 122 x 82cm and weighs appr 60kg.
This diy kit comes as a bare hull and needs to be welded together. Get in touch for options if you do not want to weld it yourself. After welding it needs to be completed with an intake, engine, steering, a seat, windows, accessoires, etc.
Included in this kit:
– 1 Hull plate
– 2 Chines
– 2 Bow sides
– 1 Foredeck

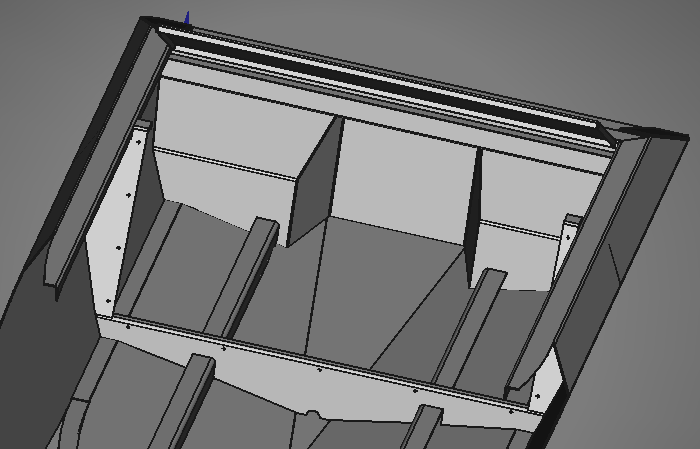

– 2 Engine bearers (L+R)
– 1 Tall windscreen
– 1 Transom
– 1 Transom middle
– 2 Sides (L+R)
– 2 Transom corners (L+R)

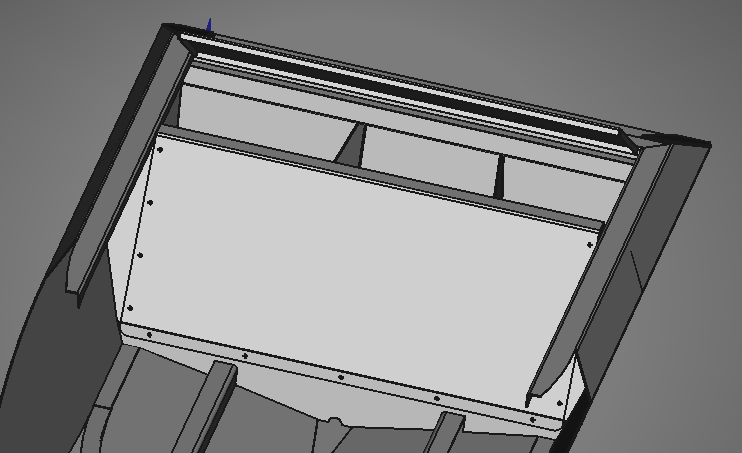

– 1 Detachable bulkhead

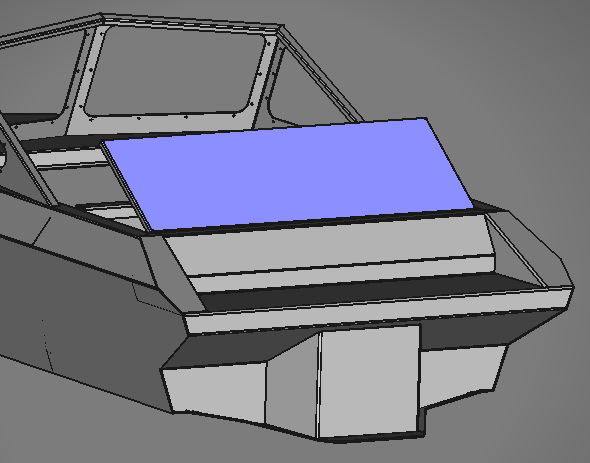

– 1 Engine bay cover
The ordering process takes approximately 4-6 weeks (to cut and bend the plates, and have it packed and ready for shipment).
